* Well Servicing and Well Stimulation Pumps
本产品具有先进的设计，适用于全球范围内的油田及工业设备。三缸泵和五缸泵的设计具有多方面的作用，
包括粘合性、酸化处理、热油处理、以及其他常规的作业。
名称：Well Servicing Pumps
功率范围：600 到1500 HP
WELL STIMULATION PUMPS
名称：INTERMITTENT SERVICE
功率范围：1250 到1600 HP
* 生产和工业用泵
名称：三缸泵和五缸泵（TRIPLEX and QUINTUPLEX PUMPS）
功率范围：25 到300 HP (19 到224 kW)
名称：TRIPLEX INDUSTRIAL DUTY and EXTENDED DUTY PUMPS
功率范围：300 到1300 HP (224 到969 kW)
名称：双缸动力泵（DUPLEX POWER PUMPS）
功率范围：16 到133 HP (12 到99 kW）
美国Gardenver Denver公司产品

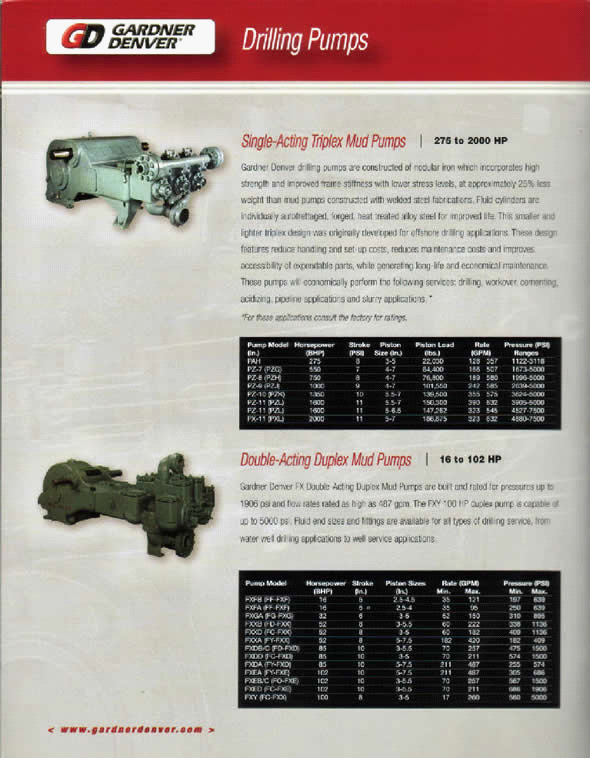

●Single-Acting Trilex Mud Pumps （ 275 to 2000 HP ）
Gardner Denver drilling pumps are constructed of nodular iron which incorporates high strength and
improved frame stiffness with lower stress levels,at approximately25%less weight than mud pumps
constructed with welded steel fabrications.Fluid cylinders are individually
autofrettaged,forged,heat treated alloy steel for improved life.This smaller and lighter triplex design
was originally developed for offshore drilling applications.These design features reduce handling
and set-up costs ,reduces maintenance costs and improves accessibility of expendable parts,
while generating long-life and economical maintenance.These pumps will economically perform
the following services:drilling,workover,cementing,acidizing,pipeline applicationans and slurry
applications* For these applications consult the factory for ratings.
Pump Mode(In)
Horsepower (BHP)
Stroke
(PSI)
Piston
Size(in)
Piston Load
(ibs)
Rate (GPM)
Pressure(PSI) Ranges
PAH
275
8
3-5
22,030
128 357
1122-3118
PZ-7(PZG)
550
7
4-7
64,400
166 507
1673-5000
PZ-8(PZH)
750
8
4-7
76,800
189 580
1996-5000
PZ-9(PZJ)
1000
9
4-7
101,550
242 585
2639-5000
PZ-10(PZK)
1350
10
5.5-7
139,500
355 575
3624-5000
PZ-11(PZL)
1600
11
5.5-7
150,300
390 632
3905-5000
PZ-11(PZL)
1600
11
5-6.5
147,262
323 545
4527-7500
PX-11(PXL)
2000
11
5-7
186,875
323 632
4880-7500
●Double-Acting Duplex Mud Pumps （ 16 to 102 HP ）
Gardner Denver FX Double-Acting Duplex Mud Pumps are built and rated for pressures up to1906
psi and flow rated as high as 487 gpm.The FXY100 HP duplex pump is capable of up to5000 psi.
Fluid end sizes and fittings are available for all types of drilling service,from water well drilling
applications to well service applications.
Pump Model
Horsepower (BHP)
Stroke
(In)
Piston Size(in)
Rate (GPM) Min Max
Pressure(PSI) Min Max
FXFB （ FF-FXF ）
16
5
2.5-4.5
35 121
197 639
FXFA(FF-FXF)
16
5
2.5-4
35 95
250 639
FXGA(FG-FXX)
32
6
3-5
52 150
310 895
FXXB(FD-FXX)
52
8
3-3.5
60 222
338 1136
FXXD(FC-FXX)
52
8
3-5
60 182
409 1136
FXXA(FY-FXX)
52
8
5-7.5
182 420
182 409
FXDB/C(FD-FXD)
85
10
3-5.5
70 257
475 1500
FXDD(FC-FXD)
85
10
3-5
70 211
574 1500
FXDA(FY-FXD)
85
10
5-7.5
211 487
255 574
FXEA(FY-FXE)
102
10
5-7.5
211 487
305 686
FXEB/C(FO-FXE)
102
10
3-5.5
70 257
567 1500
FXED(FC-FXE)
102
10
3-5.5
70 211
686 1906
FXY(FC-FXX)
100
8
3-5
17 260
560 5000

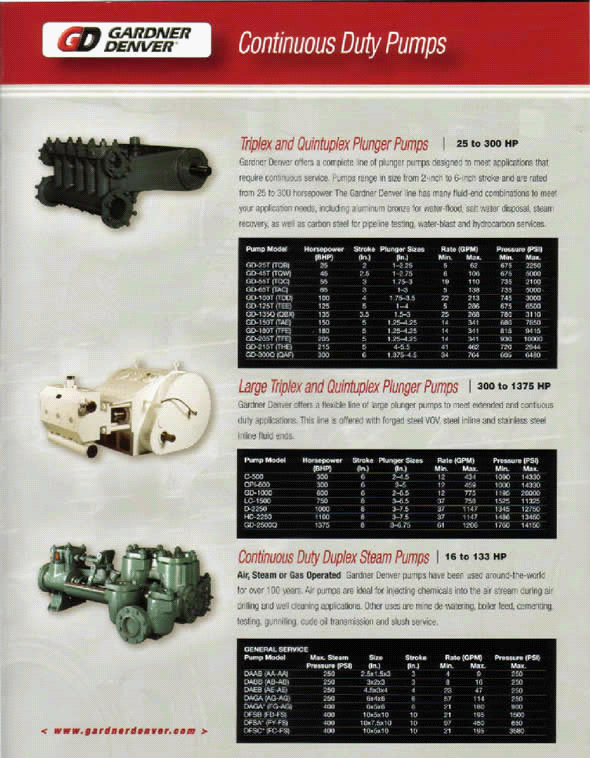

●Triplex and Quintuplex Plunger Pumps （ 25 to 300 HP ）
Gardner Denver offers a complete line of plunger pumps designed to meet applications that require
continuous service.Pumps range in size from2-inch to6-inch stroke and are rated from25to30 horsepower.The Gardner Denver line has many fluid-end
combinations to meet your application needs,including aluminum bronze for water-flood,salt water disposal ,steam recovery,
as well as carbon steel for pipeline testing, water-blast and hydrocarbon services.
Pump Model
Horsepower (BHP)
Stroke (In)
Plunger Size (in)
Rate (GPM) Min Max
Pressure(PSI) Min Max
GD-25T(TQB)
25
2
1-2.25
5 62
675 2250
GD-45T(TQW)
45
2.5
1-2.75
6 106
675 5000
GD-55T(TQC)
55
3
1.75-3
19 110
735 2100
GD-65T(TAC)
65
3
1--3
5 138
735 5000
GD-100T(TDD)
100
4
1.75-3.5
22 213
745 3000
GD-125T(TEE)
125
5
1--4
5 286
675 6500
GD-135Q(QBX)
135
3.5
1.5-3
25 268
780 3110
GD-150T(TAE)
150
5
1.25-4.25
14 341
680 7850
GD-180T(TFE)
180
5
1.25-4.25
14 341
815 9415
GD-205T(TFE)
205
5
1.25-4.25
14 341
930 10000
GD-215T(THE)
215
5
4--5.5
41 462
720 2944
GD-300Q(QAF)
300
6
1.375-4.5
34 764
605 6480
●Large Triplex and Quintuplex Plunger Pumps （ 300 to 1375 HP ）
Gardner Denver offers a flexible line of large plunger pumps to meet extended and contiuous duty
applications.This line is offered with forged steel VOV,steel inline and stainless steel inline fluid ends.
Pump Model
Horsepower (BHP)
Stroke
(In)
Plunger Size (in)
Rate (GPM)
Min Max
Pressure(PSI) Min Max
C-500
300
6
2---4.5
12 434
1090 14330
OPI-600
300
6
2---5
12 459
1000 14330
GD-1000
600
6
2---6.5
12 775
1195 20000
LC-1500
750
8
3---6.5
37 758
1525 11325
D-2250
1000
8
3---7.5
37 1147
1345 12750
HD-2250
1100
8
3---7.5
37 1147
1486 13450
GD-2500Q
1375
8
3---6.75
61 1206
1760 14150
●Continuous Duty Duplex Steam Pumps general service （ 16 to 133 HP ）
Air,Steam or Gas OperatedGardner Denver pumps have been used around-the-world for over100years.
Air pumps are ideal forinjecting chemicals into the air stream during air drilling and well cleaning applications.
Other uses are mine de-watering,boilerfeed,cementing,testing,gunniting cude oil transmission and slush
service.
Pump Model
Max.Steam
Pressure(PSI)
Size (In.)
Stroke
(In.)
Rate (GPM)
Min Max
Pressure(PSI)
Max
DAAB(AA-AA)
250
2.5 × 1.5 × 3
3
4 9
250
DABB(AB-AB)
250
3 × 2 × 3
3
8 16
250
DAEB(AE-AE)
250
4.5 × 3 × 4
4
23 47
250
DAGA(AG-AG)
250
6 × 4 × 6
6
57 114
250
DAGA*(FG-AG)
400
6 × 5 × 6
6
21 180
900
DFSB(FD-FS)
400
10 × 5 × 10
10
21 195
1500
DFSA*(FY-FS)
400
10 × 7.5 × 10
10
97 450
650
DFSC*(FC-FS)
400
10 × 5 × 10
10
21 195
3580
●Continuous Duty Duplex Production Pumps （ 16 to 133 HP ）
Oil line,mining and industrial serviceGardner Denver FX Duplex pumps are widely used for oil
line,mining,industrial and general water service.Typical applications include oil line pumping,
chemical and petroleum products transfer,mine dewatering and wash-down service on oil field drilling rigs.These pumps can be sized and fitted to meet the specific
demands of almost every application.
Pump Model
Horsepower (BHP)
Stroke (In)
Piston Size (in)
Rate (GPM) Min Max
Pressure(PSI)
Min Max
FXF(FF-FXF)
16-20
5
2.5—4
35 149
197 639
FXG(FD-FXX)
32-43
6
3—5
52 200
310 895
FXX(FD-FXX)
46-73
8
3—5.5
54 317
338 1136
FXX(FY-FXX)
46-73
8
3—5
54 260
409 1136
FXX(FC-FXX)
46-75
8
5—7.5
164 600
182 409
FXD(FD-FXD)
73-109
10
3—5.5
61 337
475 1500
FXD(FD-FXD)
73-109
10
3—5
61 276
574 1500
FXD(FY-FXD)
73-111
10
5—7.5
185 637
255 574
FXE(FD-FXE)
87-133
10
5—7.5
185 637
305 686
FXE(FY-FXE)
87-131
10
3—5.5
61 337
567 1500
FXE(FC-FXE)
87-130
10
3---5
61 276
686 1900

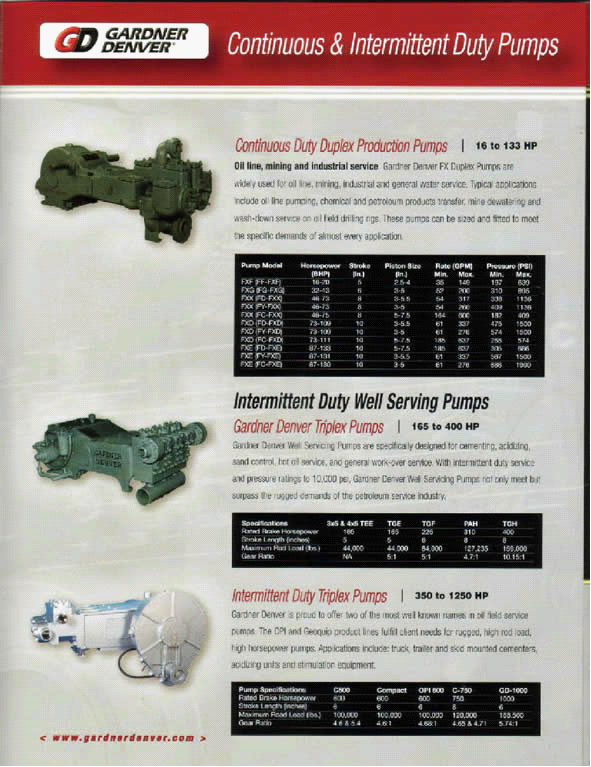

●Intermittent Duty Well Serving Pumps
●Gardner Denver Triplex Pumps (165 to 400 HP)
Gardner Denver Well Servicing pumps are specifically designed for cementing,acidizing,
sand control,hot oil service,and general work-over service.With intermittent duty service and pressure ratings to 10,000psi,Gardner
Denver Well Servicing Pumps not only meet but surpass the rugged demands of the
petroleum service industry.
Specifications
3 × 5& 4 × 5TEE
TGE
TGF
PAH
TGH
Rated Brake Horsepower
165
165
225
310
400
Stroke Length(inches)
5
5
6
8
8
Maximum Rod Load(ibs)
44,000
44,000
84,000
127,235
159,000
Gear Ratio
NA
5:1
5:1
4.7:1
10.15:1
●Intermittent Duty Triplex Pumps (350 to 1250 HP)
Gardner Denver is proid to offer two of the most well known names in oil field service
pumps.The OPI and Geoquip product lines fulfill client needs for rugged,high rod load,high
horsepower pumps.Applications include:truck,trailer and skid mounted
cementers,acidizing units and stimulation equipment.
Pump Specifications
C500
Compact
OPI 600
C-750
GD-1000
Rated Brake Horsepower
600
600
600
750
1000
Stroke Length(inches)
6
6
6
6
6
Maximum Rod Load(ibs)
100,000
100,000
100,000
120,000
188,500
Gear Ratio
4.6&5.4
4.6:1
4.68:1
4.65&4.71
5.74:1

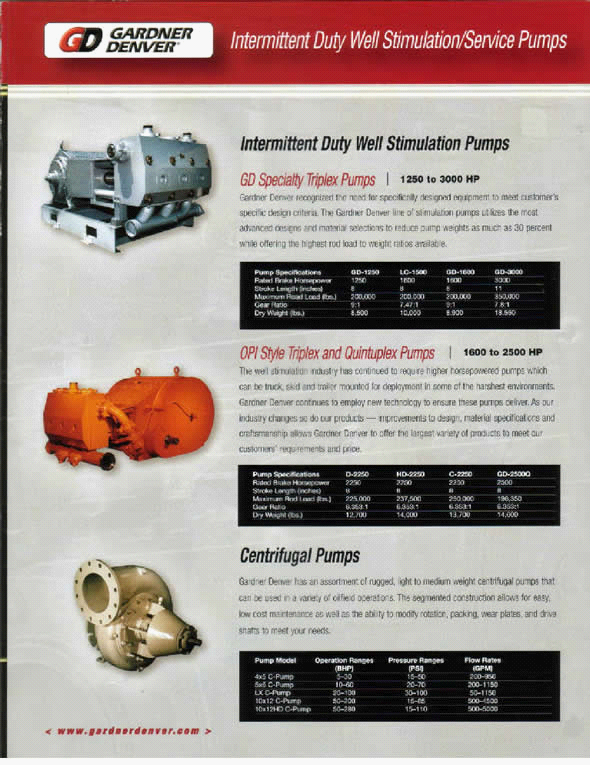

Intermittent Duty Well Stimulation Pumps
●GD Specialty Triplex Pumps (1250 to 3000 HP)
Gardner Denver recognized the need for specifically designed equipment to meet
customer ' s specific design criteria.The Gardner Denver line of stimulation pumps utilizes
the most advanced designs and material selections to reduce pump weights as much as30
percent while offering the highest rod load to weight ratios available.
Pump Specifications
GD-1250
LC-1500
GD-1600
GD-3000
Rated Brake Horsepower
1250
1600
1600
3000
Stroke Length(inches)
8
8
8
11
Maximum Rod Load(ibs)
200,000
200,000
200,000
350,000
Gear Ratio
9:1
7.47:1
9:1
7.8:1
Dry Weight(ibs)
8,500
10,000
8,900
18,550
OPI Style Triplex and Quintuplex Pumps (1600 to 2500 HP)
The well stimulation industy has continued to require higher horsepowered pumps
which can be truck,skid and trailer mounted for deployment in some of the harshest
environments.Gardner Denver continues to employ new technology toensuer these
pumps deliver.As our industry changes so do our products—improvements to design,
material specif-ications and craftsmanship allows Gardner Denver to offer the largest
variety of products to meet our customers ' requirements and price.
Pump Specifications
D-2250
HD-2250
C-2250
GD-2500Q
Rated Brake Horsepower
2250
2250
2250
2500
Stroke Length(inches)
8
8
8
8
Maximum Rod Load(ibs)
225,000
237,500
250,000
196,350
Gear Ratio
6.353:1
6.363:1
6.353:1
6.353:1
Dry Weight(ibs)
12,700
14,000
13,700
14,600
CentrifugalPumps-11
Gardner Denver has an assortment of rugged, light to medium weight centrifugal
pumps that can be used in a variety of oilfield operationd.The segmented
construction allows for easy, low cost maintenance as well as the ability to modify
rotation,packing, wear plates,and drive shafts to meet your needs.
