Fema
Honeywell FEMA 能提供广泛的温度调节装置，从简单的房间温度控制开关到 ATEX 认证的开关。我们有不同类型的温度调节装置：
电子，
标准机械，
部件测试 (TüV, DVGW, etc) ATEX 认证 (Zone 1 & 2).
电子温度调节装置
– 新型的SmartTemp通过我们获奖的设计为用户提供灵活性和方便使用。所有的主要参数都可以自由编程，同时包括了附加功能，如可以有效减少安装时间的仿真方式。标准机械温度调节装置
– 我们的机械温度调节装置设计成长寿命，同时因带有防海水金属外壳而坚固。 部件测试温度调节装置
– 我们的很多产品已经过合格机构的蒸汽和气体特别应用测试。 ATEX 认证的温度调节装置－是最近添加到我们产品中的温度调节装置，符合新的ATEX规定。我们的设备经过1 & 2区中气体& 灰尘认证。
FEMA压力开关
Honeywell FEMA有4组压力开关： 电子 标准机械 部件测试 ATEX 认证电子压力开关 - 新型的SmartTemp通过我们获奖的设计为用户提供灵活性和方便使用。所有的主要参数都可以自由编程，同时包括了附加功能，如可以有效减少安装时间的仿真方式。标准机械压力开关 - 我们的机械温度调节装置设计成长寿命，同时因带有防海水金属外壳而坚固。 部件测试压力开关 - 我们的很多产品已经过合格机构的中等蒸汽和气体特别应用测试。 ATEX 认证压力开关 -是最近添加到我们产品中的压力开关，符合新的ATEX规定。我们的设备经过1 & 2区中气体& 灰尘认证。

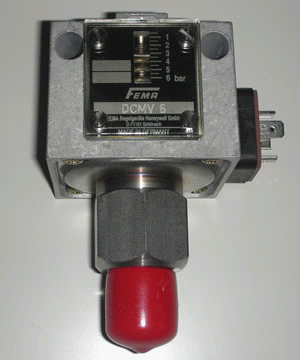

FEMA DCMV6
FEMA压力变送器
Honeywell FEMA有3组压力变送器产品：智能变送器 (LON) 机械感应 Piezo 阻抗智能变送器 (LON) – 我们的变送器系列，具LON bus能力。 机械感应变送器 – 基于成熟的机械变送器技术。
Old Type |
New Type |
DCMV 625 DNM 506 DNM 516 DNM
525 DNM 06 DNM 1 DNM 6 DNM
625 DNM 10 DNM 16 DNM 25 DNM
40 DNM 63 DNMV 025 DNMV
06 DNMV 1 DNMV
6 DNMV 16 DNMV 40 DNMV 63 |
DWR 625-203 DGM 506 DGM 516 DGM
525 DWR 06 DWR 1 DCM 6 DCM 625 DCM
10 DCM 16 DCM 25 DCM 40 DCM
63 DNS 025-203 DWR 06-203 DWR 1-203 DCMV 6 DCMV 16 DCMV 40 DCMV 63 |
Old Type |
New Type |
Ex-DCM 025 Ex-DCM 06 Ex-DCM 1
Ex-DNM 506 Ex-DNM 516 Ex-DNM 525
Ex-DNM 06 Ex-DNM 1 Ex-DNM 3
Ex-DNM 6 Ex-DNM 625 Ex-DNM 16
Ex-DNM 25 Ex-DNM 40 |
Ex-DNS 025 Ex-DWR 06 Ex-DWR 1 Ex-DGM
506 Ex-DGM 516 Ex-DGM 525 Ex-DWR 06 Ex-DWR 1 Ex-DWR 3 Ex-DWR 6 Ex-DWR 625 Ex-DWR 16 Ex-DWR 25 Ex-DWR 40 |
Old Type |
New Type |
FN 5 + ED 1 FN 10 + ED 1 FN 25 + ED 1
FN 40 + ED 1 FN 5 + ED 3 FN 10 + ED
3 FN 25 + ED 3 FN 40 + ED 3 |
SN 6-311 SN 10-311 SN 25-311 SN 40-311
SN 6-395 SN 10-395 SN 25-395 SN 40-311 |
FEMA压力开关(FEMA Pressure Switch 压力开关):
DWR625-203 DGM506 DGM516 DGM525 DWR06 DWR1 DCM6 DCM625
DCM10 DCM16 DCM25 DCM40 DCM63 DNS025-203 DWR06-203
DWR1-203 DCMV6 DCMV16 DCMV40 DCMV63 ;Ex-DNS025
Ex-DWR06 Ex-DWR1 Ex-DGM506 Ex-DGM516 Ex-DGM525
Ex-DWR06 Ex-DWR1 Ex-DWR3 Ex-DWR6 Ex-DWR625
Ex-DWR16 Ex-DWR25 Ex-DWR40
FEMA压力变送器(FEMA Pressure Transmitter):
SN6-311 SN10-311 SN25-311 SN40-311 SN6-395
SN10-395 SN25-395 SN40-311
DCM, DDCM, DNM, DNS, VCM, VNM, VNS
DWR, DGM, Ex-DWR, Ex-DGM
DCM 适用于非腐蚀性气体和液体的压力开关
DDCM液体气体压差开关适用于蒸汽，气体，冷热水和过滤设备自动检测的水流监控和压差控制
DGM
DNM
DNS
DPS空气压差开关用于空调系统或通风系统中空气，非可燃性气体和非腐蚀性气体的过滤监控和流量开关
DWAM/ SDBAM (Installation/ Mounting Instruction)
DWAM/ SDBAM
DWR 用于热水，蒸汽，燃料，气体的最小压力限位DWR
DWR-B
Ex-DCM
Ex-DDCM
Ex-DGM
Ex-DNM
Ex-DNS
Ex-DWR
Ex-VCM
FD (Installation/ Mounting Instruction)
FD
HCD
PST用于高粘性或动荡流体的电子压力开关
VCM
Pressure Transmitters
AFF - L
APT (Installation/ Mounting Instruction)
APV (Installation/ Mounting Instruction)
APV/ APT
AZ
DPT
F ... + ED1 (Installation/ Mounting Instruction)
F ... + ED1
F ... + ED3 (Installation/ Mounting Instruction)
F ... + ED3
FHBN ... -L
FTS
LF20L
SK
SK-LON
SL (Installation/ Mounting Instruction)
SN-LON
SN ... - LON (Installation/ Mounting Instruction)
SN ... - 3
SN ... - 280
SN ... - 311 (Installation/ Mounting Instruction)
SN ... - 395 (Installation/ Mounting Instruction)
T74 ... L
VF20T - L, VF20L - L
Thermostats
Accessories for thermostats
Ex-FT
Ex-TAM
Ex-TRM
Ex-TRM/ Ex-FT/ Ex-TAM (Installation/ Mounting Instruction)
Ex-VCM
FT
FTS (Installation/ Mounting Instruction)
H6045
STB
TAM
TKM
TRM
TX
T6120-B
T69
TST (Installation/ Mounting Instruction)
TX/ FT/ TAM/ TRM (Installation/ Mounting Instruction)
Flow Monitoring
KSW / KSL
S60 ...
SWL
SWW
-50 ... 50 without LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT50
-100 ... 100 without LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT110
0 ... 100/250 without LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT100
0 ... 250/500 without LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT250
0 ... 500/1000 without LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT500
0 ... 1000/2500 without LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT1000
0 ... 100/250 with LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT100D
0 ... 250/500 with LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT250D
0 ... 500/1000 with LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT500D
0 ... 1000/2500 with LCD 0..10Vdc 18..30Vac, 16..32Vdc DPT1000D
-50 ... 50 without LCD 4..20mA 18..30Vac, 16..32Vdc DPT53
-100 ... 100 without LCD 4..20mA 18..30Vac, 16..32Vdc DPT113
0 ... 100/250 without LCD 4..20mA 18..30Vac, 16..32Vdc DPT103
0 ... 250/500 without LCD 4..20mA 18..30Vac, 16..32Vdc DPT253
0 ... 500/1000 without LCD 4..20mA 18..30Vac, 16..32Vdc DPT503
0 ... 1000/2500 without LCD 4..20mA 18..30Vac, 16..32Vdc DPT1003
0 ... 100/250 with LCD 4..20mA 18..30Vac, 16..32Vdc DPT103D
0 ... 250/500 with LCD 4..20mA 18..30Vac, 16..32Vdc DPT253D
0 ... 500/1000 with LCD 4..20mA 18..30Vac, 16..32Vdc DPT503D
0 ... 1000/2500 with LCD 4..20mA 18..30Vac, 16..32Vdc DPT1003D
-50 ... 50 without LCD 4..20mA 18..32Vdc DPT52
-100 ... 100 without LCD 4..20mA 18..32Vdc DPT112
0 ... 100/250 without LCD 4..20mA 18..32Vdc DPT102
0 ... 250/500 without LCD 4..20mA 18..32Vdc DPT252
0 ... 500/1000 without LCD 4..20mA 18..32Vdc DPT502
0 ... 1000/2500 without LCD 4..20mA 18..32Vdc DPT1002
SN025-280 SN06-280 SN1-280 SN2-280 SN3-280 SN4-280 SN6-280 SN10-280 SN16-280
SN25-280 SN40-280 SN025-311 SN06-311 SN1-311 SN3-311 SN6-311 SN10-311 SN25-311
SN40-311 SN025-395 SN06-395 SN1-395 SN3-395 SN6-395 SN10-395 SN25-395 SN40-395
PSTV01RG12S PSTV01RG12S-R PSTM250RG12S PSTM250RG12S-R
PSTM400RG12S PSTM400RG12S-R PSTM600RG12S PSTM600RG12S-R
PST001RG12S PST001RG12S-R PST002RG12S PST002RG12S-R
PST004RG12S PST004RG12S-R PST010RG12S PST010RG12S-R
PST025RG12S PST025RG12S-R PST060RG12S PST060RG12S-R
PST100RG12S PST100RG12S-R PST250RG12S PST250RG12S-R
PST600RG12S PST600RG12S-R PSTV01RG34F PSTV01RG34F-R
PSTM250RG34F PSTM250RG34F-R PSTM400RG34F PSTM400RG34F-R
PSTM600RG34F PSTM600RG34F-R PST001RG34F PST001RG34F-R
PST002RG34F PST002RG34F-R PST004RG34F PST004RG34F-R
PST010RG34F PST010RG34F-R PST025RG34F PST025RG34F-R
PST002AG12S PST002AG12S-R PST010AG12S PST010AG12S-R
PST002AG34F PST002AG34F-R PST010AG34F PST010AG34F-R
-1 ... 1 6 vacuum, relative PSTV01RG34F
0 ... 0.25 1 overpressure, relative PSTM250RG34F
0 ... 0.4 2 overpressure, relative PSTM400RG34F
0 ... 0.6 2 overpressure, relative PSTM600RG34F
0 ... 1 6 overpressure, relative PST001RG34F
0 ... 1.6 6 overpressure, relative PST02RG34F
0 ... 4 12 overpressure, relative PST004RG34F
0 ... 10 30 overpressure, relative PST010RG34F
0 ... 25 75 overpressure, relative PST025RG34F
0 ... 2 6 absolute PST002AG34F
0 ... 10 30 absolute PST010AG34F
-1 ... 1 6 0..10Vdc / 4..20 mA + switch vacuum, relative PSTV01RG12S
0 ... 0.25 1 0..10Vdc / 4..20 mA + switch overpressure, relative PSTM250RG12S
0 ... 0.4 2 0..10Vdc / 4..20 mA + switch overpressure, relative PSTM400RG12S
0 ... 0.6 2 0..10Vdc / 4..20 mA + switch overpressure, relative PSTM600RG12S
0 ... 1.6 6 0..10Vdc / 4..20 mA + switch overpressure, relative PST002RG12S
0 ... 4 12 0..10Vdc / 4..20 mA + switch overpressure, relative PST004RG12S
Switch + Transmitter + Relay output, PST..R -models
-1 ... 1 6 vacuum, relative PSTV01RG34F-R
0 ... 0.25 1 overpressure, relative PSTM250RG34F-R
0 ... 0.4 2 overpressure, relative PSTM400RG34F-R
0 ... 0.6 2 overpressure, relative PSTM600RG34F-R
0 ... 1 6 overpressure, relative PST001RG34F-R
0 ... 1.6 6 overpressure, relative PST002RG34F-R
0 ... 4 12 overpressure, relative PST004RG34F-R
0 ... 10 30 overpressure, relative PST010RG34F-R
0 ... 25 75 overpressure, relative PST025RG34F-R
0 ... 2 6 absolute PST002AG34F-R
0 ... 10 30 absolute PST010AG34F-R
5-prong M12 plug connector, straight version ST12-5-G
5-prong M12 plug connector, angled version ST12-5-A
4-prong M12 plug connector, straight version ST12-4-G
4-prong M12 plug connector, angled version ST12-4-A
4-prong M12 plug connector, straight version with 2 m cable ST12-4-GK
4-prong M12 plug connector, angled version with 2 m cable ST12-4-AK
Plug protection cap, IP65 STA12
0.04 ... 0.25 — 0.03 6 Copper + Brass DCM025
0.1 ... 0.6 — 0.04 6 Copper + Brass DCM06
0.2 ... 1.6 — 0.04 6 Copper + Brass DCM1
0.2 ... 2.5 — 0.1 16 1.4104 + 1.4571 DCM3
0.5 ... 6 — 0.15 16 1.4104 + 1.4571 DCM6
0.5 ... 6 — 0.25 25 1.4104 + 1.4571 DCM625
1 ... 10 — 0.3 25 1.4104 + 1.4571 DCM10
3 ... 16 — 0.5 25 1.4104 + 1.4571 DCM16
4 ... 25 — 1 60 1.4104 + 1.4571 DCM25
8 ... 40 — 1.3 60 1.4104 + 1.4571 DCM40
16 ... 63 — 2 130 1.4104 + 1.4571 DCM63
0.04 ... 0.25 — 0.03 6 1.4104 + 1.4571 DNM025
0.04 ... 0.25 0.03 ... 0.4 — 6 Copper + Brass DCMV025
0.1 ... 0.6 0.04 ... 0.5 — 6 Copper + Brass DCMV06
0.2 ... 1.6 0.07 ... 0.55 — 6 Copper + Brass DCMV1
0.2 ... 2.5 0.15 ... 1.5 — 16 1.4104 + 1.4571 DCMV3
0.5 ... 6 0.25 ... 2 — 16 1.4104 + 1.4571 DCMV6
1 ... 10 0.5 ... 2.8 — 25 1.4104 + 1.4571 DCMV10
3 ... 16 0.7 ... 3.5 — 25 1.4104 + 1.4571 DCMV16
4 ... 25 1.3 ... 6 — 60 1.4104 + 1.4571 DCMV25
8 ... 40 2.6 ... 6.6 — 60 1.4104 + 1.4571 DCMV40
16 ... 63 3 ... 10 — 130 1.4104 + 1.4571 DCMV63
1 ... 16 2 1 Perbunan + 1.4301 DCM4016
4 ... 25 2 1 Perbunan + 1.4301 DCM4025
10 ... 100 12 10 Perbunan + Brass DCM1000
15 ... 60 10 12 1.4104 + 1.4571 DCM506
0.04 ... 0.25 — 0.03 6 DNS025-201
0.1 ... 0.6 — 0.04 6 DNS06-201
0.2 ... 1.6 — 0.06 6 DNS1-201
0.2 ... 2.5 — 0.1 16 DNS3-201
0.5 ... 6 — 0.15 16 DNS6-201
1 ... 10 — 0.3 16 DNS10-201
3 ... 16 — 0.5 25 DNS16-201
0.04 ... 0.25 0.06 ... 0.3 — 6 DNS025-203
0.1 ... 0.6 0.08 ... 0.4 — 6 DNS06-203
0.2 ... 1.6 0.1 ... 0.6 — 6 DNS1-203
0.2 ... 2.5 0.15 ... 1.5 — 16 DNS3-203
0.5 ... 6 0.25 ... 2 — 16 DNS6-203
1 ... 10 0.45 ... 2.5 — 16 DNS10-203
3 ... 16 0.8 ... 3.5 — 25 DNS16-203
0.004 ... 0.025 0.002 0.5 Perbunan + Aluminium DDCM252
0.01 ... 0.06 0.015 1.5 Perbunan + Aluminium DDCM662
0.02 ... 0.16 0.02 3 Perbunan + Aluminium DDCM1602
0.1 ... 0.6 0.035 3 Perbunan + Aluminium DDCM6002
-0.1 ... 0.4 0.15 15 1.4305 + 1.4571 DDCM014
0.2 ... 1.6 0.13 15 1.4305 + 1.4571 DDCM1
1 ... 4 0.2 25 1.4305 + 1.4571 DDCM4
0.5 ... 6 0.2 15 1.4305 + 1.4571 DDCM6
3 ... 16 0.6 25 1.4305 + 1.4571 DDCM16
-0.015 ... 0.006 — 2 1 Perbunan + 1.4301 VCM4156
-0.25 ... 0.1 — 25 1.5 Copper + Brass VCM301
-0.25 ... 0.1 — 45 3 1.4104 + 1.4571 VNM301
-1 ... 0.1 — 45 3 Copper + Brass VCM101
-0.9 ... 0.5 — 50 3 Copper + Brass VCM095
-1 ... 0.1 — 50 6 1.4104 + 1.4571 VNM111
Adjustable pressure hysteresis
Pressure adjustment range Adjustable switching
differential Switching differential Max.
pressure Sensing element material Type
bar bar mbar bar
-0.25 ... 0.1 0.03 ... 0.2 — 1.5 Copper + Brass VCMV301
-0.25 ... 0.1 0.07 ... 0.5 — 3 1.4104 + 1.4571 VNMV301
-1 ... 0.1 0.08 ... 0.35 — 3 Copper + Brass VCMV101
-0.9 ... 0.5 0.09 ... 0.4 — 3 Copper + Brass VCMV095
-1 ... 0.1 0.09 ... 0.65 — 6 1.4104 + 1.4571 VNMV111
-0.25 ... 0.1 — 45 3 VNS301-201
-1 ... 0.1 — 50 6 VNS111-201
Adjustable pressure hysteresis
Pressure adjustment range Adjustable switching differential
Switching differential Max. pressure Type
bar mbar mbar bar
-0.25 ... 0.1 70 ... 300 — 3 VNS301-203
-1 ... 0.1 90 ... 550 — 6 VNS111-203
0.015 ... 0.06 6 0.8 Copper + Brass DGM306A
0.02 ... 0.1 7 0.8 Copper + Brass DGM310A
0.04 ... 0.25 10 0.8 Copper + Brass DGM325A
0.1 ... 0.6 25 2 Copper + Brass DGM06A
0.2 ... 1.6 40 3 Copper + Brass DGM1A
0.015 ... 0.06 8 5 1.4104 + 1.4571 DGM506
0.04 ... 0.16 12 5 1.4104 + 1.4571 DGM516
0.1 ... 0.25 20 5 1.4104 + 1.4571 DGM525
0.1 ... 0.6 — 0.04 5 DWAM06
0.2 ... 1.6 — 0.05 5 DWAM1
1.2 ... 6 — 0.2 10 DWAM6
1.2 ... 6 — 0.25 20 DWAM625
3 ... 16 — 0.4 20 DWAM16
6 ... 32 — 1.2 45 DWAM32
0.2 ... 1.6 0.12 ... 0.6 — 5 DWAMV1
1.2 ... 6 0.4 ... 1.5 — 10 DWAMV6
3 ... 16 0.8 ... 2.5 — 20 DWAMV16
3 ... 32 2.5 ... 6 — 45 DWAMV32
0.1 ... 0.6 — 0.04 6 6 DWR06
0.2 ... 1.6 — 0.06 6 6 DWR1
0.2 ... 2.5 — 0.1 16 10 DWR3
0.5 ... 6 — 0.2 16 10 DWR6
0.5 ... 6 — 0.25 25 20 DWR625
3 ... 16 — 0.5 25 20 DWR16
4 ... 25 — 1 63 50 DWR25
8 ... 40 — 1.3 63 50 DWR40
0.1 ... 0.6 0.08 ... 0.5 — 6 6 DWR06-203
0.2 ... 1.6 0.15 ... 0.6 — 6 6 DWR1-203
0.2 ... 2.5 0.17 ... 1.2 — 16 10 DWR3-203
0.5 ... 6 0.3 ... 1.4 — 16 10 DWR6-203
0.5 ... 6 0.4 ... 2.5 — 25 20 DWR625-203
3 ... 16 0.75 ... 3.15 — 25 20 DWR16-203
4 ... 25 1.3 ... 6 — 63 50 DWR25-203
8 ... 40 2.3 ... 6.6 — 63 50 DWR40-203
0.1 ... 0.6 6 6 DWR06-205
0.2 ... 1.6 6 6 DWR1-205
0.2 ... 2.5 16 10 DWR3-205
0.5 ... 6 16 10 DWR6-205
0.5 ... 6 25 20 DWR625-205
3 ... 16 25 20 DWR16-205
4 ... 25 63 50 DWR25-205
8 ... 40 63 50 DWR40-205
0.1 ... 0.6 6 6 DWR06-206
0.2 ... 1.6 6 6 DWR1-206
0.2 ... 2.5 16 10 DWR3-206
0.5 ... 6 16 10 DWR6-206
0.5 ... 6 25 20 DWR625-206
3 ... 16 25 20 DWR16-206
4 ... 25 63 50 DWR25-206
8 ... 40 63 50 DWR40-206
0.5 maximum press./electrical FD16-326
2.5 maximum press./button FD16-327
0.2 ... 1.6 0.12 5 SDBAM1
0.4 ... 2.5 0.15 5 SDBAM2,5
1.2 ... 6 0.4 10 SDBAM6
1.2 ... 6 0.6 20 SDBAM625
3 ... 16 0.8 20 SDBAM16
6 ... 32 3 45 SDBAM32
0.001 ... 0.016 0.002 1 Perbunan + 1.4301 Ex-DCM4016
0.004 ... 0.025 0.002 1 Perbunan + 1.4301 Ex-DCM4025
1 ... 10 0.3 16 1.4104 + 1.4571 Ex-DNM10
16 ... 63 1 130 1.4104 + 1.4571 Ex-DNM63
0.04 ... 0.25 0.03 6 Ex-DNS025
0.1 ... 0.6 0.04 6 Ex-DNS06
0.2 ... 1.6 0.06 6 Ex-DNS1
0.2 ... 2.5 0.1 16 Ex-DNS3
0.5 ... 6 0.15 16 Ex-DNS6
1 ... 10 0.3 16 Ex-DNS10
3 ... 16 0.5 25 Ex-DNS16
0.004 ... 0.025 0.002 0.5 Perbunan + Aluminium Ex-DDCM252
0.01 ... 0.06 0.015 1.5 Perbunan + Aluminium Ex-DDCM662
0.02 ... 0.16 0.02 3 Perbunan + Aluminium Ex-DDCM1602
0.1 ... 0.6 0.035 3 Perbunan + Aluminium Ex-DDCM6002
-0.1 ... 0.4 0.15 15 1.4305 + 1.4571 Ex-DDCM014
0.2 ... 1.6 0.13 15 1.4305 + 1.4571 Ex-DDCM1
1 ... 4 0.2 25 1.4305 + 1.4571 Ex-DDCM4
0.5 ... 6 0.2 15 1.4305 + 1.4571 Ex-DDCM6
3 ... 16 0.6 25 1.4305 + 1.4571 Ex-DDCM16
